Choosing the right bevel gear for your heavy-duty trucks can seem like a complex decision. There are dozens of manufacturers, hundreds of price points, and a sea of conflicting information. In the B2B world, procurement managers are often tempted to choose the cheapest option to boost short-term margins. However, in the world of heavy logistics, a cheap gear is the most expensive mistake you can make.
At CK Gears, we don’t just sell drivetrain parts; we engineer reliability. We focus on one material above all others for heavy-load applications. We are talking about 20CrMnTiH alloy steel. We believe that when your trucks are hauling 40 tons across a continent, this steel isn’t just a choice—it is the only professional choice.
Today, we are moving away from the “price conversation” and towards the “performance conversation.” Here are three expert reasons why this specific steel is the secret to a high-converting, low-warranty drivetrain business.
1. Carburizing and Surface Hardness: Surviving the Torque
The most critical factor for a bevel gear in a heavy-duty truck is not how tough it is in the factory, but how hard it can become in the “fire.” The teeth of these gears are under constant, intense pressure. If the material is too soft, the gears will “peel” or pit under heavy torque, leading to noisy axles and rapid failure.
20CrMnTiH is a specialized, low-carbon alloy designed perfectly for a process called carburizing.
What it Does: Through deep carburizing heat treatment, we force carbon deep into the surface of the steel.

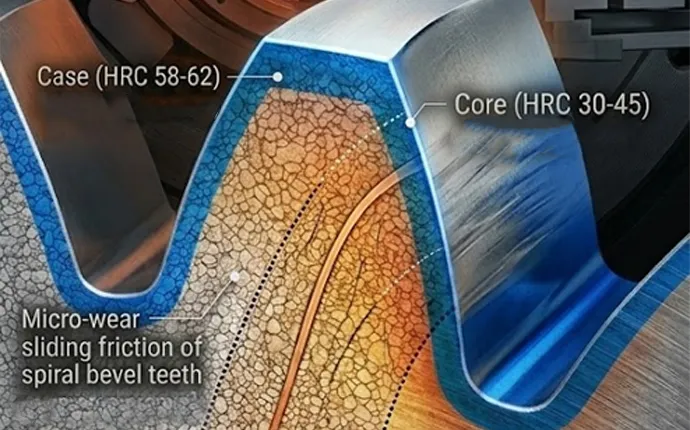

The Result: We create a “shell” that is incredibly hard HRC 58-62, while leaving the internal core tough and resilient.
The Benefit to You: This combination allows the bevel gear to resist wear and surface damage for hundreds of thousands of kilometers, even when pulling max loads. Inferior “carbon steel” alternatives simply cannot achieve this level of durable surface hardness.
2. Unmatched Case Depth Control: Uniformity Equals Quiet Performance
In modern European and Japanese trucks, performance is judged by more than just brute strength; it is judged by NVH (Noise, Vibration, Harshness). When a truck driver complains about axle noise, it often means the gears are wearing unevenly. Uneven wear often comes from uneven heat-treatment results.
20CrMnTiH alloy steel is famous for its high hardenability. This is a technical term that means we can control exactly how deep the hard “case” goes.
Factory Control: With this material, we can guarantee that every single tooth on every bevel gear set has the exact same hardened depth.
Flawless Mesh: Because the wear is perfectly uniform, the mesh remains flawless. There is no vibration, no heat buildup, and that dreadful “whine” disappears.
Consultative Selling: When you can show your customers a CMM (Coordinate Measuring Machine) report proving uniform case depth, you move beyond the commodity market and become a technical authority.
3.High Toughness (Impact Resistance): Preventing Catastrophic Fracture
It is not enough to make a gear hard; you must also make it strong enough to not break. A bevel gear in a logistics truck doesn’t just experience smooth driving. It hits potholes, manages sudden shifts, and deals with rough mountain passes. These moments create “impact loads.”
This is where many budget suppliers fail. To make a cheap steel hard, they often make it brittle. A brittle gear is a dangerous gear. One hard pothole, and a tooth can snap off, destroying the entire differential.
20CrMnTiH solves this dilemma. The specific combination of Chrome (Cr), Manganese (Mn), and Titanium (Ti) creates a micro-structure that is naturally tough and ductile. It can absorb shocks without cracking. When you combine this core toughness with the surface hardness from Strategy #1, you get a gear that is virtually “bulletproof” against the real-world elements of heavy transport.
Stop Buying on Price, Start Sourcing on Reliability
In the B2B logistics market, your reputation is your currency. If you sell a bevel gear set that fails in six months, you aren’t just losing money on a warranty claim; you are losing the trust of a fleet owner. Fleet owners don’t forget which parts kept their trucks moving and which ones left them on the side of the road.
At CK Gears, we choose 20CrMnTiH alloy steel not because it is cheap—it isn’t—but because it allows us to deliver a “Fit and Forget” solution. It is the material of choice for national-level experts in China’s specialized drivetrain sector, and we are proud to bring that precision to our partners in Europe, South America, and Southeast Asia.
